My sample to Send Email using Indy components Delphi and Gmail account with SSL protocol
Emailx45 - 06/Jun/2020
[SHOWTOGROUPS=4,20]
Here my sample for create a app to send email using Indy components on Delphi or maybe in C++Builder too! (I dont know nothing about C++)

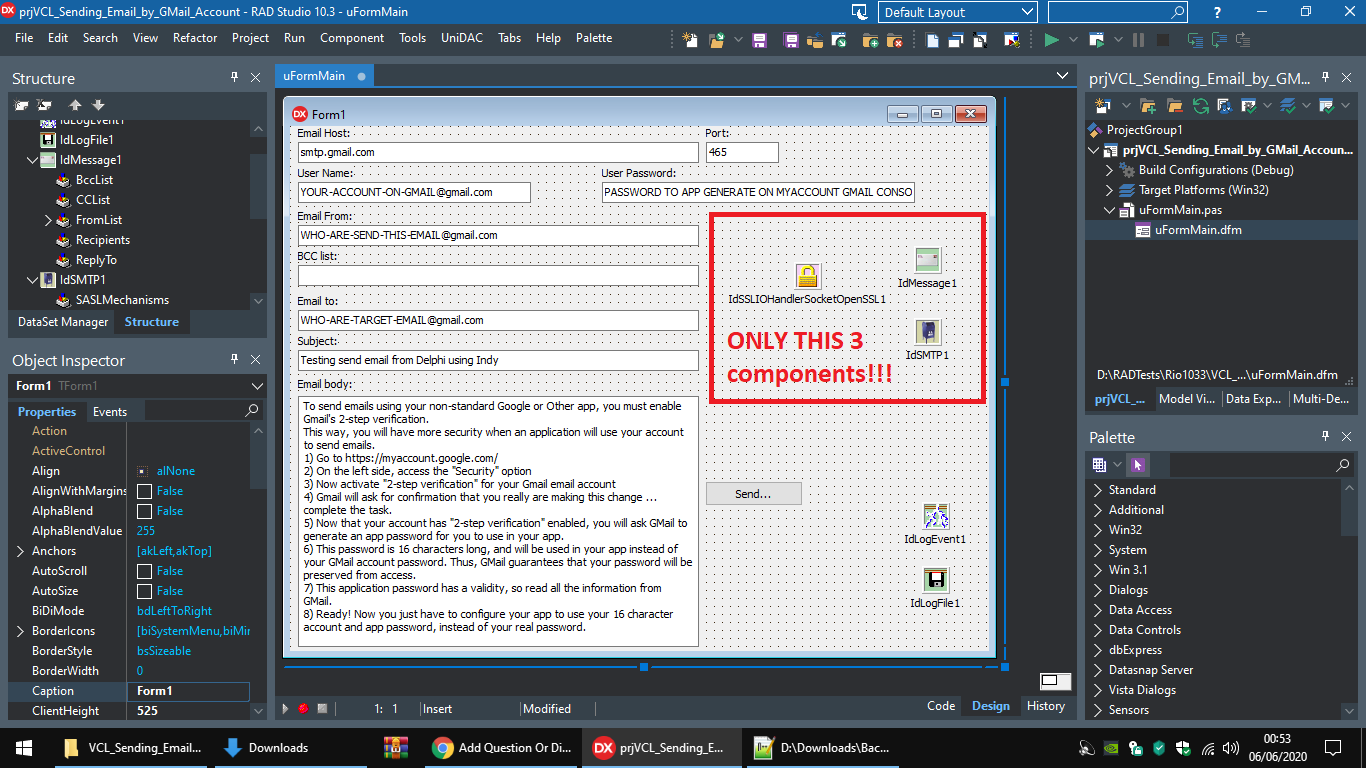

ONLY 3 INDY Components:
  • IdSSLIOHandlerSocketOpenSSL
  • IdMessage
  • IdSMTP
  • of course, you can create it on-the-fly!!!

IMPORTANT NOTE: running your app by IDE (F9 key ) with or without DEBUG, you will receive the error message showing error "Socket Error # 10013 - Access denied"

Как увидеть ссылки? | How to see hidden links?

Solution: Execute your application directly on Explorer Windows (out of your IDE environment)


Код:
To send emails using your non-standard Google or Other app, you must enable Gmail's 2-step verification.

This way, you will have more security when an application will use your account to send emails.

1) Go to https://myaccount.google.com/
2) On the left side, access the "Security" option
3) Now activate "2-step verification" for your Gmail email account
4) Gmail will ask for confirmation that you really are making this change ... complete the task.
5) Now that your account has "2-step verification" enabled, you will ask GMail to generate an app password for you to use in your app.
6) This password is 16 characters long, and will be used in your app instead of your GMail account password. Thus, GMail guarantees that your password will be preserved from access.
7) This application password has a validity, so read all the information from GMail.
8) Ready! Now you just have to configure your app to use your 16 character account and app password, instead of your real password.

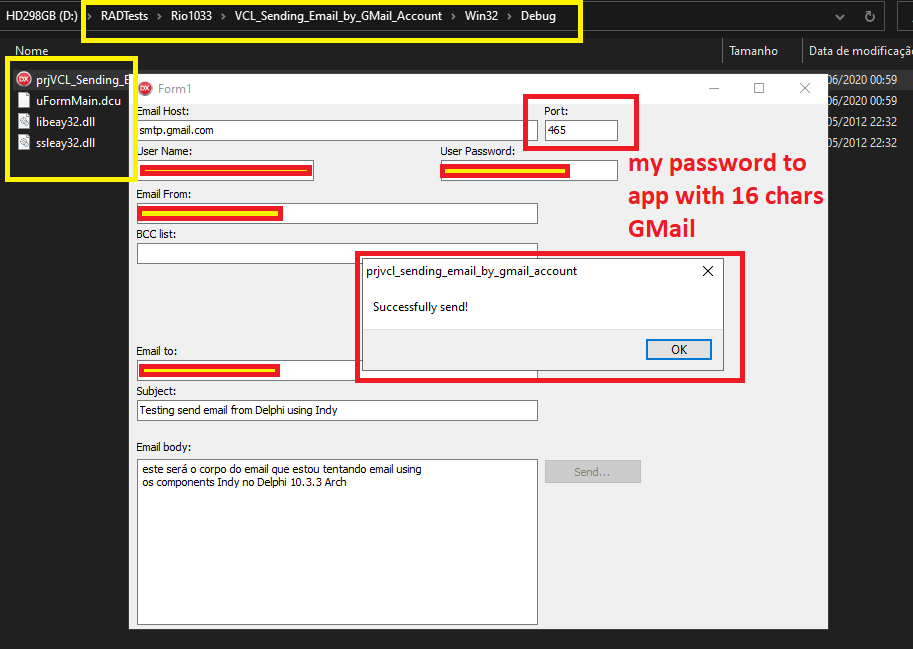

my simple VCL app create in Delphi - RAD Studio 10.3.3 Arch - nothing advanced ok? Only for test process...
Код:
object Form1: TForm1
  Left = 0
  Top = 0
  Caption = 'Form1'
  ClientHeight = 525
  ClientWidth = 699
  Color = clBtnFace
  Font.Charset = DEFAULT_CHARSET
  Font.Color = clWindowText
  Font.Height = -11
  Font.Name = 'Tahoma'
  Font.Style = []
  OldCreateOrder = False
  Position = poScreenCenter
  PixelsPerInch = 96
  TextHeight = 13
  object lbEmailBody: TLabel
    Left = 8
    Top = 251
    Width = 55
    Height = 13
    Caption = 'Email body:'
  end
  object lbedtEmailTo: TLabeledEdit
    Left = 8
    Top = 184
    Width = 401
    Height = 21
    EditLabel.Width = 41
    EditLabel.Height = 13
    EditLabel.Caption = 'Email to:'
    TabOrder = 0
    Text = '[email protected]'
  end
  object lbedtEmailSubject: TLabeledEdit
    Left = 8
    Top = 224
    Width = 401
    Height = 21
    EditLabel.Width = 40
    EditLabel.Height = 13
    EditLabel.Caption = 'Subject:'
    TabOrder = 1
    Text = 'Testing send email from Delphi using Indy'
  end
  object mmEmailBody: TMemo
    Left = 8
    Top = 270
    Width = 401
    Height = 251
    Lines.Strings = (

        'To send emails using your non-standard Google or Other app, you ' +
        'must enable '
      'Gmail'#39's 2-step verification.'

        'This way, you will have more security when an application will u' +
        'se your account '
      'to send emails.'
      '1) Go to https://myaccount.google.com/'
      '2) On the left side, access the "Security" option'

        '3) Now activate "2-step verification" for your Gmail email accou' +
        'nt'

        '4) Gmail will ask for confirmation that you really are making th' +
        'is change ... '
      'complete the task.'

        '5) Now that your account has "2-step verification" enabled, you ' +
        'will ask GMail to '
      'generate an app password for you to use in your app.'

        '6) This password is 16 characters long, and will be used in your' +
        ' app instead of '

        'your GMail account password. Thus, GMail guarantees that your pa' +
        'ssword will be '
      'preserved from access.'

        '7) This application password has a validity, so read all the inf' +
        'ormation from '
      'GMail.'

        '8) Ready! Now you just have to configure your app to use your 16' +
        ' character '
      'account and app password, instead of your real password.')
    TabOrder = 2
  end
  object btnEmailSend: TButton
    Left = 415
    Top = 355
    Width = 98
    Height = 25
    Caption = 'Send...'
    TabOrder = 3
    OnClick = btnEmailSendClick
  end
  object lbedtEmailFrom: TLabeledEdit
    Left = 8
    Top = 99
    Width = 401
    Height = 21
    EditLabel.Width = 55
    EditLabel.Height = 13
    EditLabel.Caption = 'Email From:'
    TabOrder = 4
    Text = '[email protected]'
  end
  object lbedtEmailHost: TLabeledEdit
    Left = 8
    Top = 16
    Width = 401
    Height = 21
    EditLabel.Width = 53
    EditLabel.Height = 13
    EditLabel.Caption = 'Email Host:'
    TabOrder = 5
    Text = 'smtp.gmail.com'
  end
  object lbedtHostPort: TLabeledEdit
    Left = 416
    Top = 16
    Width = 73
    Height = 21
    EditLabel.Width = 24
    EditLabel.Height = 13
    EditLabel.Caption = 'Port:'
    TabOrder = 6
    Text = '465'
  end
  object lbedtHostUserName: TLabeledEdit
    Left = 8
    Top = 56
    Width = 233
    Height = 21
    EditLabel.Width = 56
    EditLabel.Height = 13
    EditLabel.Caption = 'User Name:'
    TabOrder = 7
    Text = '[email protected]'
  end
  object lbedtHostPassword: TLabeledEdit
    Left = 312
    Top = 56
    Width = 313
    Height = 21
    EditLabel.Width = 75
    EditLabel.Height = 13
    EditLabel.Caption = 'User Password:'
    TabOrder = 8
    Text = 'PASSWORD TO APP GENERATE ON MYACCOUNT GMAIL CONSOLE'
  end
  object lbedtEmailBCCList: TLabeledEdit
    Left = 8
    Top = 139
    Width = 401
    Height = 21
    EditLabel.Width = 40
    EditLabel.Height = 13
    EditLabel.Caption = 'BCC list:'
    TabOrder = 9
  end
  object IdSSLIOHandlerSocketOpenSSL1: TIdSSLIOHandlerSocketOpenSSL
    Destination = ':25'
    Intercept = IdLogEvent1
    MaxLineAction = maException
    Port = 25
    DefaultPort = 0
    SSLOptions.Mode = sslmUnassigned
    SSLOptions.VerifyMode = []
    SSLOptions.VerifyDepth = 0
    Left = 456
    Top = 176
  end
  object IdMessage1: TIdMessage
    AttachmentEncoding = 'UUE'
    BccList = <>
    CCList = <>
    Encoding = meDefault
    FromList = <
      item
      end>
    Recipients = <>
    ReplyTo = <>
    ConvertPreamble = True
    Left = 568
    Top = 120
  end
  object IdSMTP1: TIdSMTP
    Intercept = IdLogEvent1
    IOHandler = IdSSLIOHandlerSocketOpenSSL1
    SASLMechanisms = <>
    Left = 568
    Top = 192
  end
  object IdLogEvent1: TIdLogEvent
    Left = 568
    Top = 280
  end
  object IdLogFile1: TIdLogFile
    Intercept = IdLogEvent1
    Filename = 'IndyLog.txt'
    Left = 576
    Top = 360
  end
end

Код:
unit uFormMain;

interface

uses
  Winapi.Windows,
  Winapi.Messages,
  System.SysUtils,
  System.Variants,
  System.Classes,
  Vcl.Graphics,
  Vcl.Controls,
  Vcl.Forms,
  Vcl.Dialogs,
  Vcl.StdCtrls,
  Vcl.ExtCtrls,
  IdBaseComponent,
  IdComponent,
  IdIOHandler,
  IdIOHandlerSocket,
  IdIOHandlerStack,
  IdSSL,
  IdSSLOpenSSL,
  IdMessage,
  IdTCPConnection,
  IdTCPClient,
  IdExplicitTLSClientServerBase,
  IdMessageClient,
  IdSMTPBase,
  IdSMTP,
  IdLogFile,
  IdIntercept,
  IdLogBase,
  IdLogEvent;

type
  TForm1 = class(TForm)
    lbedtEmailTo: TLabeledEdit;
    lbedtEmailSubject: TLabeledEdit;
    mmEmailBody: TMemo;
    lbEmailBody: TLabel;
    btnEmailSend: TButton;
    lbedtEmailFrom: TLabeledEdit;
    lbedtEmailHost: TLabeledEdit;
    lbedtHostPort: TLabeledEdit;
    lbedtHostUserName: TLabeledEdit;
    lbedtHostPassword: TLabeledEdit;
    lbedtEmailBCCList: TLabeledEdit;
    IdSSLIOHandlerSocketOpenSSL1: TIdSSLIOHandlerSocketOpenSSL;
    IdMessage1: TIdMessage;
    IdSMTP1: TIdSMTP;
    IdLogEvent1: TIdLogEvent;
    IdLogFile1: TIdLogFile;
    procedure btnEmailSendClick(Sender: TObject);
  private
    function fncSendEmail(): boolean;
  public
    { Public declarations }
  end;

var
  Form1: TForm1;

implementation

{$R *.dfm}
{ TForm1 }

uses
  IdText,
  IdEMailAddress;

procedure TForm1.btnEmailSendClick(Sender: TObject);
begin
  btnEmailSend.Enabled := false;
  //
  if fncSendEmail then
    ShowMessage('Successfully send!')
  else
    ShowMessage('It was not possible send email!');

end;

function TForm1.fncSendEmail(): boolean;
var
  lMyIdSSLIOHandlerSocket: TIdSSLIOHandlerSocketOpenSSL;
  lMyIdText              : TIdText;
  lMyIdEMailAddressItem  : TIdEMailAddressItem;
begin
  result := false;
  //
  lMyIdSSLIOHandlerSocket := nil;
  lMyIdText               := nil;
  //
  try
    lMyIdSSLIOHandlerSocket                   := TIdSSLIOHandlerSocketOpenSSL.Create(nil);
    lMyIdSSLIOHandlerSocket.SSLOptions.Method := TIdSSLVersion.sslvSSLv23;
    lMyIdSSLIOHandlerSocket.SSLOptions.Mode   := TIdSSLMode.sslmClient;
    //
    //
    IdMessage1.CharSet      := 'utf-8';
    IdMessage1.Encoding     := TIdMessageEncoding.meMIME;
    IdMessage1.From.Name    := 'From <<your name for example>>';
    IdMessage1.From.Address := lbedtEmailFrom.Text;
    IdMessage1.Priority     := TIdMessagePriority.mpNormal;
    IdMessage1.Subject      := lbedtEmailSubject.Text;
    //
    // referent to the Tartgets
    // lMyIdEMailAddressItem                :=
    IdMessage1.Recipients.Add;
    IdMessage1.Recipients.EMailAddresses := lbedtEmailTo.Text;
    IdMessage1.CCList.EMailAddresses     := lbedtEmailTo.Text;
    // IdMessage1.BccList.EMailAddresses    := lbedtEmailBCCList.Text;
    // IdMessage1.BccList.EMailAddresses    := '[email protected]'; // ocult copy!
    //
    // setting the message's body type
    lMyIdText := TIdText.Create(IdMessage1.MessageParts);
    // it's means that the email sended, can dont have any HTML format!
    // the message will can contain special chars "charset=iso-8859-1"
    // else, the chars will have HTML codes!
    IdMessage1.ContentType := 'text/html; text/plain; charset=iso-8859-1';
    IdMessage1.Body.Add(mmEmailBody.Text);
    //
    // preparing server...
    IdSMTP1.IOHandler := lMyIdSSLIOHandlerSocket;
    IdSMTP1.UseTLS    := utUseImplicitTLS;
    IdSMTP1.AuthType  := TIdSMTPAuthenticationType.satDefault;
    IdSMTP1.Host      := lbedtEmailHost.Text;
    IdSMTP1.AuthType  := TIdSMTPAuthenticationType.satDefault;
    IdSMTP1.Port      := StrToInt(lbedtHostPort.Text); // set direct 465 SSL port
    IdSMTP1.Username  := lbedtHostUserName.Text;
    IdSMTP1.Password  := lbedtHostPassword.Text;
    //
    // connecting and authenticating...
    try
      IdSMTP1.Connect;
      IdSMTP1.Authenticate;
      //
      // if connected and authenticated...
      if IdSMTP1.Connected then
      begin
        try
          IdSMTP1.Send(IdMessage1);
          //
          result := true;
        except
          on E: Exception do
            ShowMessage('Error on sending email' + sLineBreak + E.Message);
        end;
      end;
    except
      on E: Exception do
        ShowMessage('Error on connecting / authenticating on server' + sLineBreak + E.Message);
    end;
  finally
    if not(lMyIdText = nil) then
      lMyIdText.Free;
    ///
    if not(lMyIdSSLIOHandlerSocket = nil) then
      lMyIdSSLIOHandlerSocket.Free;
  end;
end;

end.







[/SHOWTOGROUPS]
